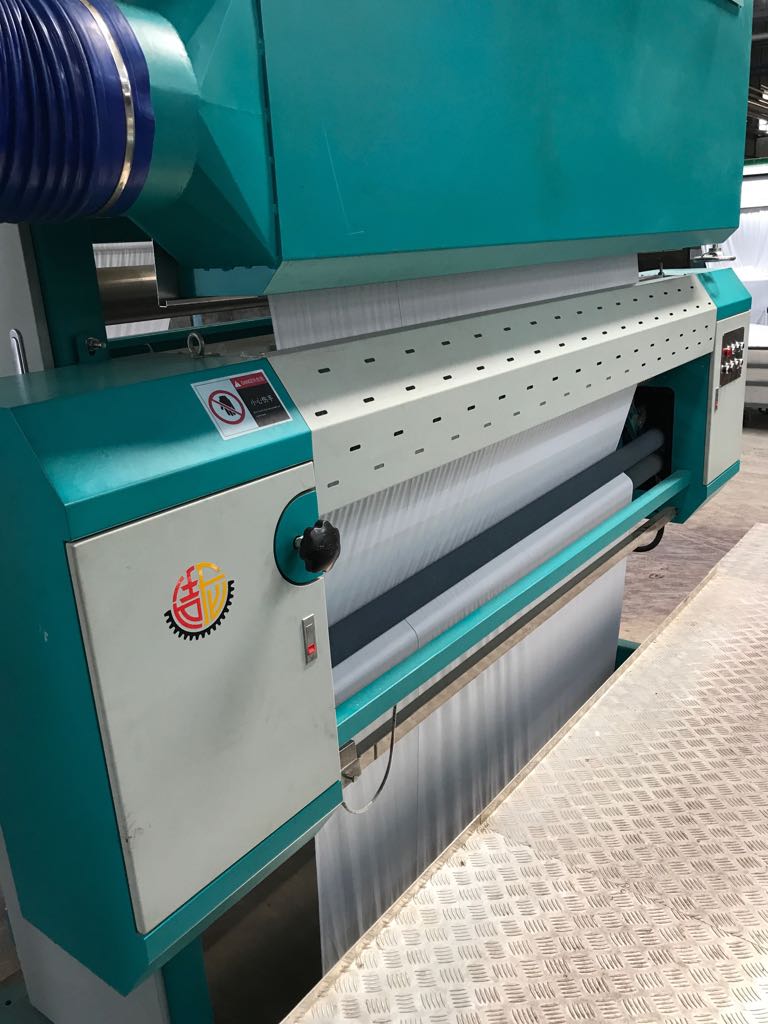

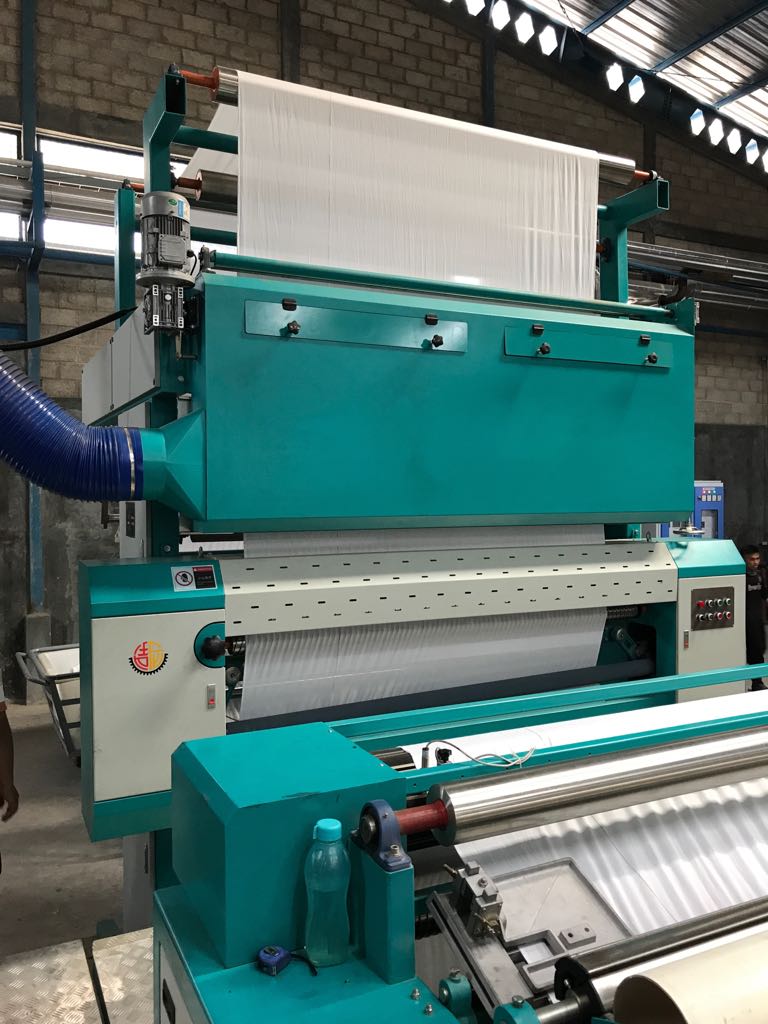

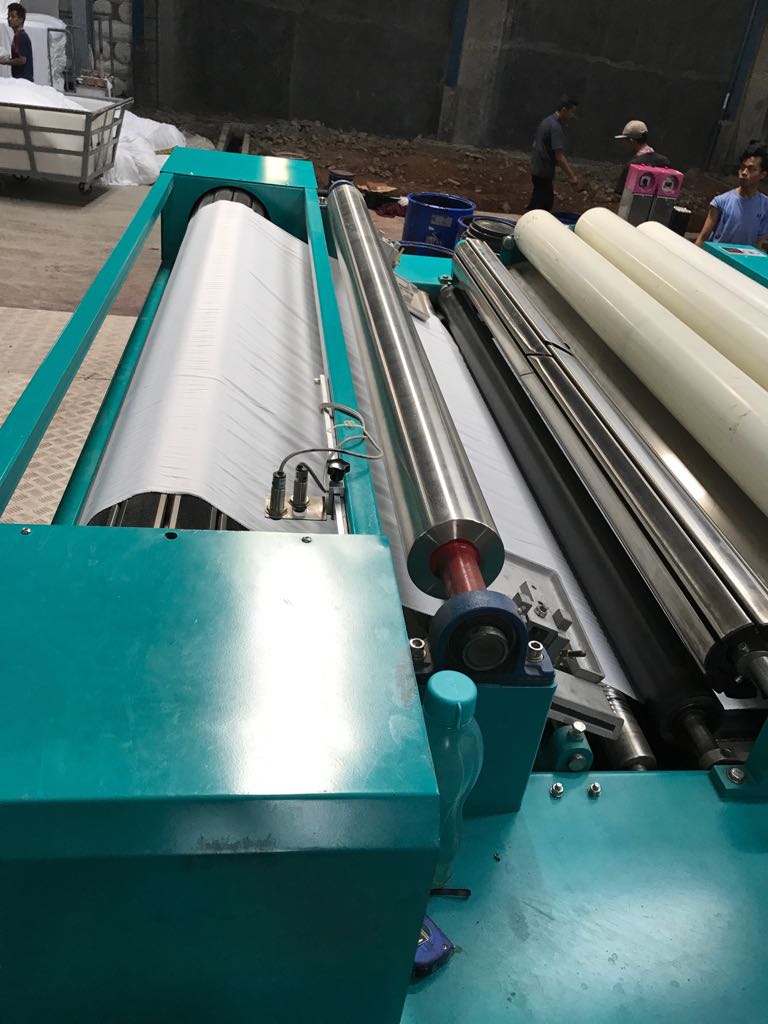

T01.Cai Die Rotary Screen Printing Machine
BUTTERFLY series rotary screen printing machine is out researched and developed open-type magnet printing machine with total intellectual property. After innovation of technology and inspection of market, it becomes a popular type and has below feature:
- Open-type screen head, easy to install and dimantle screen, save waiting time of changing shift
- Magnet table is good rigidity, pressure of magnet rod is unlimited adjustable, it is suitable for different weight fabric
- CAN control system, HM (Human-machine) panel to operate easily
- Inspect and display malfunction, guide and check to deal with malfunction quickly
- Servo motor individual driving, accurate and realiable auto register
- Screen frame can be lift up on the single side, which convenient to clean and maintain
- Residu paste returned device, reducing pollution draining
- High cofiguration purchased from global market, it is stable and reliable
| Application | Application in natural fiber, chemical fiber and other blended woven and knitting fabric |
| Fabric weight | 50 g/m2 - 600 g/m2 |
| Printing width | 1650mm(180type) 1859mm(200type) 2050mm(220type) 2250mm(240type) 2450mm(260type) 2650mm(280type) 2850mm(300type) 3050mm(320type) 3250mm(340type) |
| Printing color | 8C/10C/12C/14C/16C/20C/24C |
| Printing repeat | 640mm/820mm/914mm/1018mm/1206mm |
| Printing type | magnet squeegee system |
| Machine speed | 4 - 80 M/min |
| Type of screen head driving | Individual driving |
| Register precision | +/- 0.1mm |
| Register adjustment range | Vertical: no limited, Horizontal:+/- 10mm, Diagonal:+/-5mm |
| Drying mode | 4 air mounts, 3-layer fabric passing, heat drying |
| Chambers of dryer | 2-7 chamber of tighten or loosen dryers, customers can choose |
| Heating source | Steam/Thermal oil/gas |
| Fabric-entry and exit mode | Open-width |
| Machine type | Left/right hand |
| Compressed air | 0.6-0.8Mpa |
| Water supply | Water pressure is not less than 0.3Mps |
| Machine structure | It consists of fabric-entry, printing unit, drying, and fabric -exit |
