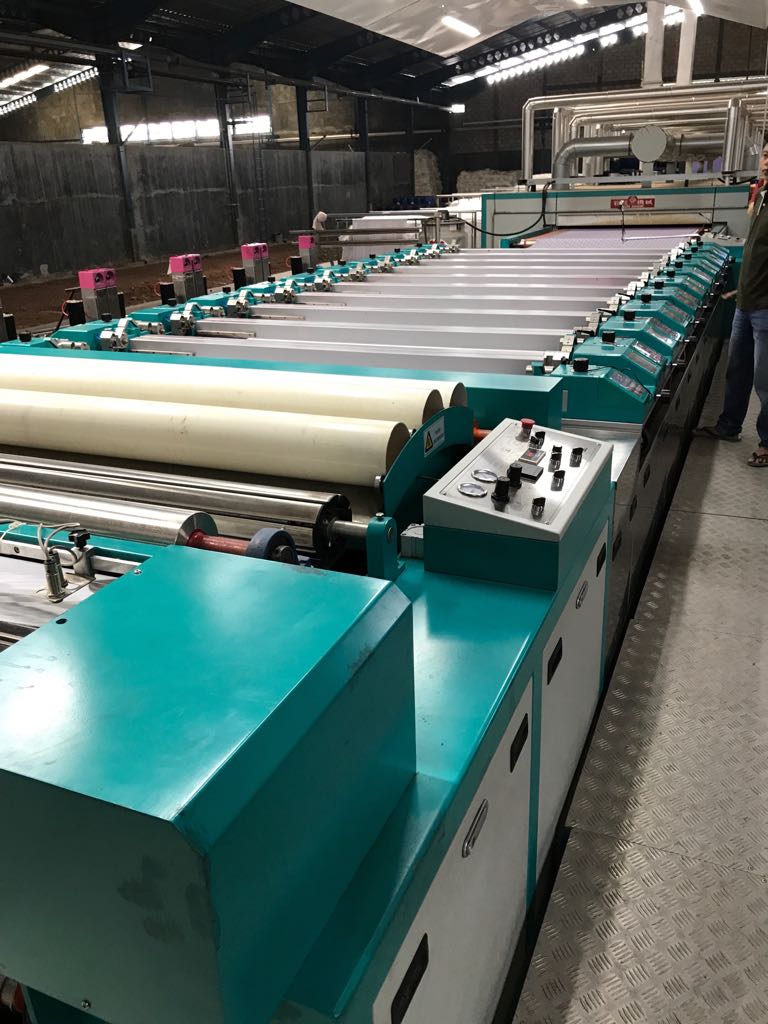

T01.Cai Die Rotary Screen Printing Machine

BUTTERFLY series rotary screen printing machine is out researched and developed open-type magnet printing machine with total intellectual property. After innovation of technology and inspection of market, it becomes a popular type and has below feature:

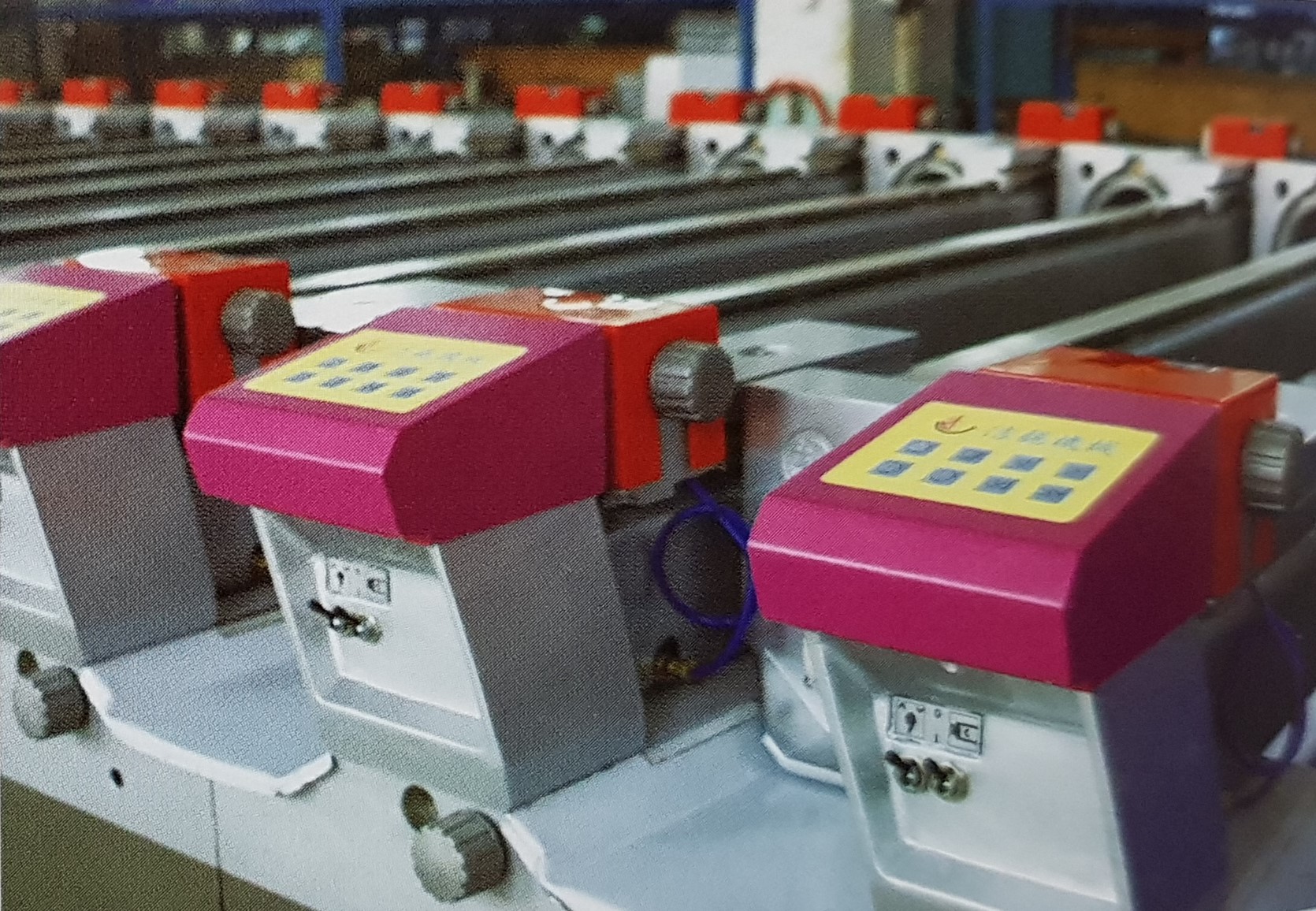

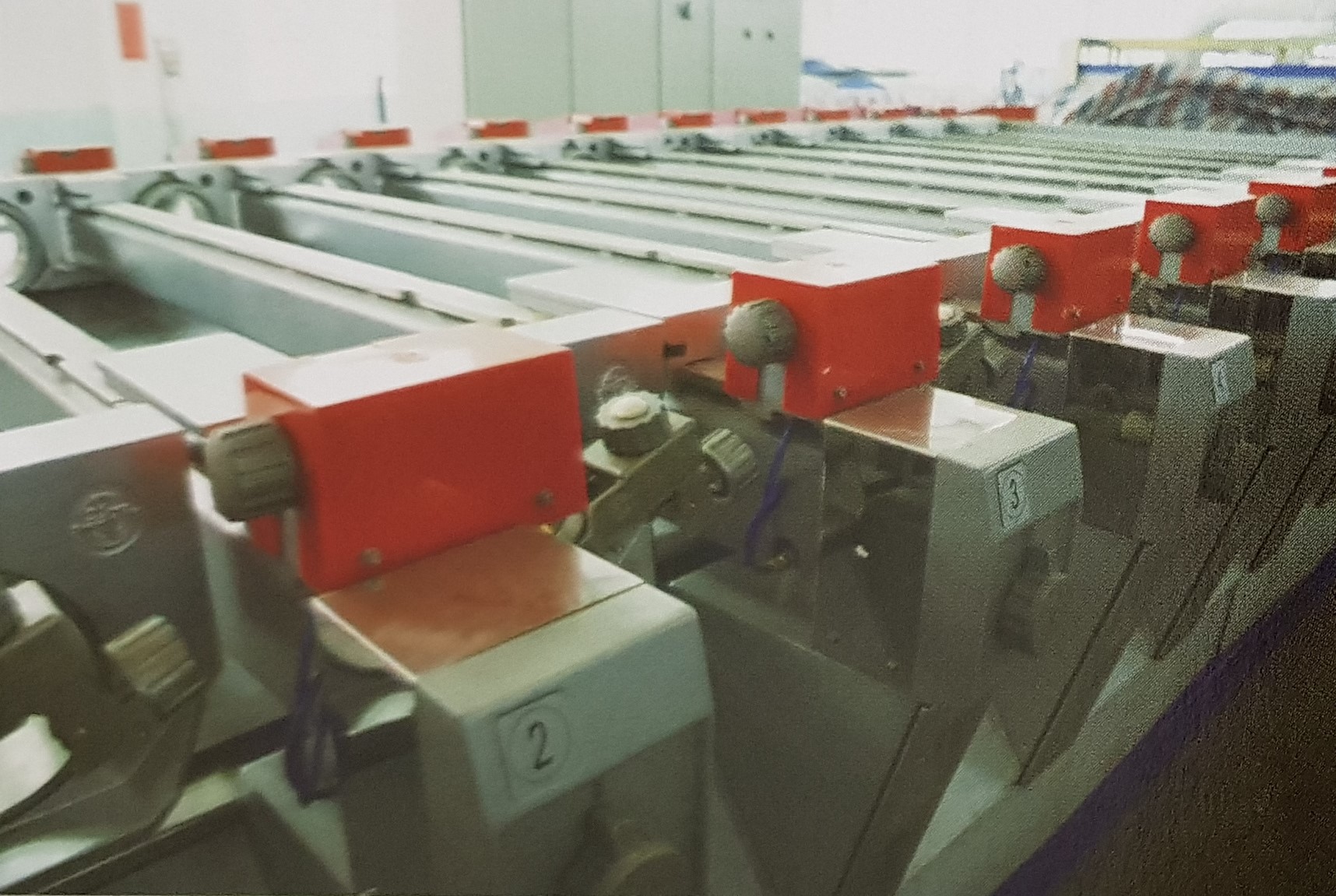

Open-type screen head, easy to install and dimantle screen, save waiting time of changing shift
Magnet table is good rigidity, pressure of magnet rod is unlimited adjustable, it is suitable for different weight fabric
CAN control system, HM (Human-machine) panel to operate easily
Inspect and display malfunction, guide and check to deal with malfunction quickly
Servo motor individual driving, accurate and realiable auto register
Screen frame can be lift up on the single side, which convenient to clean and maintain
Residu paste returned device, reducing pollution draining
High cofiguration purchased from global market, it is stable and reliable

Application	Application in natural fiber, chemical fiber and other blended woven and knitting fabric
Fabric weight	50g/m2 - 600g/m2
Printing width	1650mm(180type) 1859mm(200type) 2050mm(220type) 2250mm(240type) 2450mm(260type) 2650mm(280type) 2850mm(300type) 3050mm(320type) 3250mm(340type)
Printing color	8C/10C/12C/14C/16C/20C/24C
Printing repeat	640mm/820mm/914mm/1018mm/1206mm
Machine Speed	4 - 80 M/min
Type of screen head driving	Mechanical driving/ Individual driving
Register precision	+/- 0.1mm
Register adjustment range	Vertical: no limited, Horizontal:+/- 10mm, Diagonal:+/-3mm

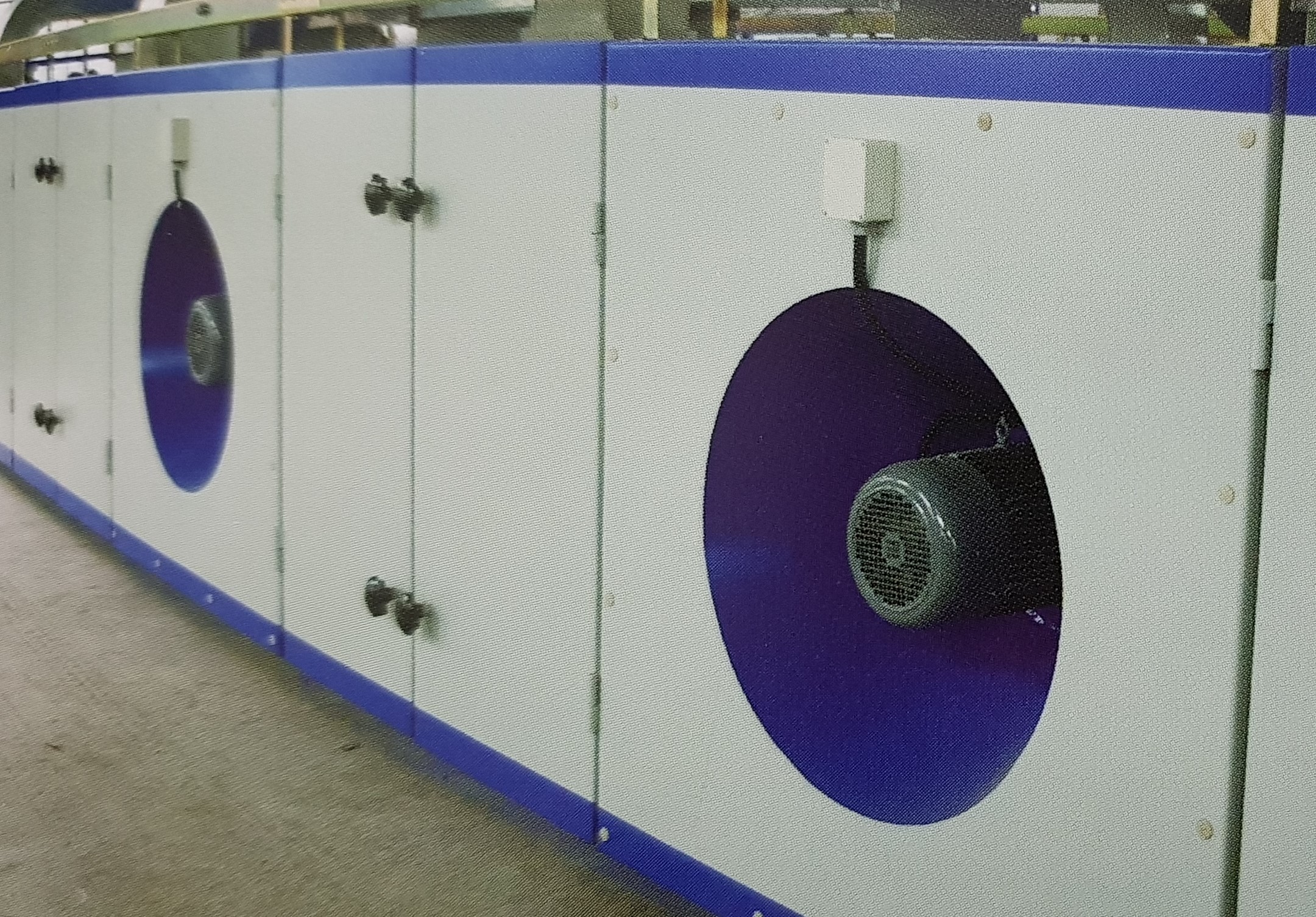

Drying mode	4 air mounts, 3-layer fabric passing, heat drying
Chambers of dryer	2-7 chamber of tighten or loosen dryers, customers can choose
Heating source	Steam/Thermal oil/gas
Fabric-entry and exit mode	Open-width
Machine type	Left/right hand
Compressed air	0.6-0.8Mpa
Water supply	Water pressure is not less than 0.3Mps
Machine structure	It consists of fabric-entry, printing unit, drying, and fabric -exit
