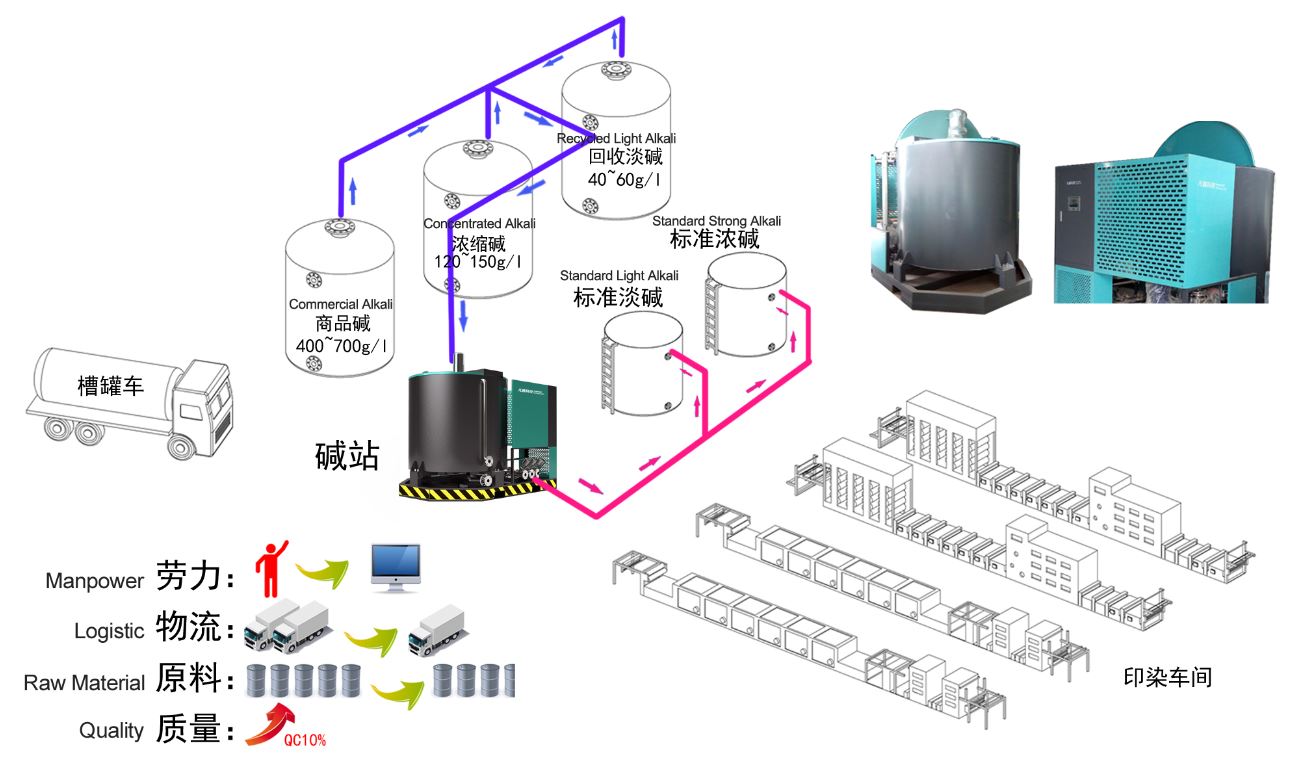

Commercial alkali, recycled light alkali and vaporized alkali are blended automatically, alkaline concentration is inspected in good time and alkali preparation folows the process method in order to achieve a sound formula reproducibility.
Raw material cost
Recycled alkali shall be user preferably to reduce the commercial alkali dosage
Logistics Cost
Commercial alkali shall adopt high concentration alkali as much as possible to relatively reduce the logistics transportation expenditure
Unattended Repeater Station
In view of the unattended repeater station, labor damages are reduced greatly
Product Quality
By strictly controlling the concentration standard alkaline liquor, product stability is improved greatly.
Usable capacity of Alkaline Barrel | 3 m3 |
Alkaline Concentration Proportioning Range | 0-350 g/L |
Alkaline Concentration Precision Range | +/-5 g/L |
Temperature Measuring Range | 0-100 Celsius |
Power Supply | 380V, 50Hz |
Power of Main Pump | 3/4/5.5 kw |
Power of Electric Mixer | 2.2 kw |
Normal Diameter of External Flange Orifice | DN50, DN65, DN80 |
Quantity of Alkali inlet Pipe Interface | 2-4 |
Overall Size (LxWxH) | 2900x1900x2600 mm |
Equipment Weight | 900kg |
